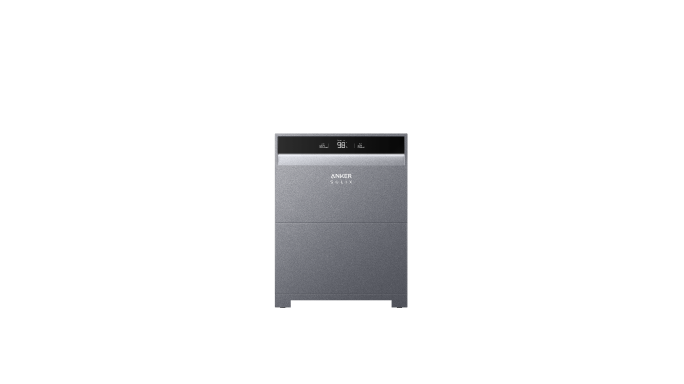

Anker SOLIX X1
Whole-Home Backup Power
Anker SOLIX X1
Anker SOLIX X1
Anker SOLIX X1
Anker SOLIX X1
Discover the Power of X1
Anker SOLIX X1

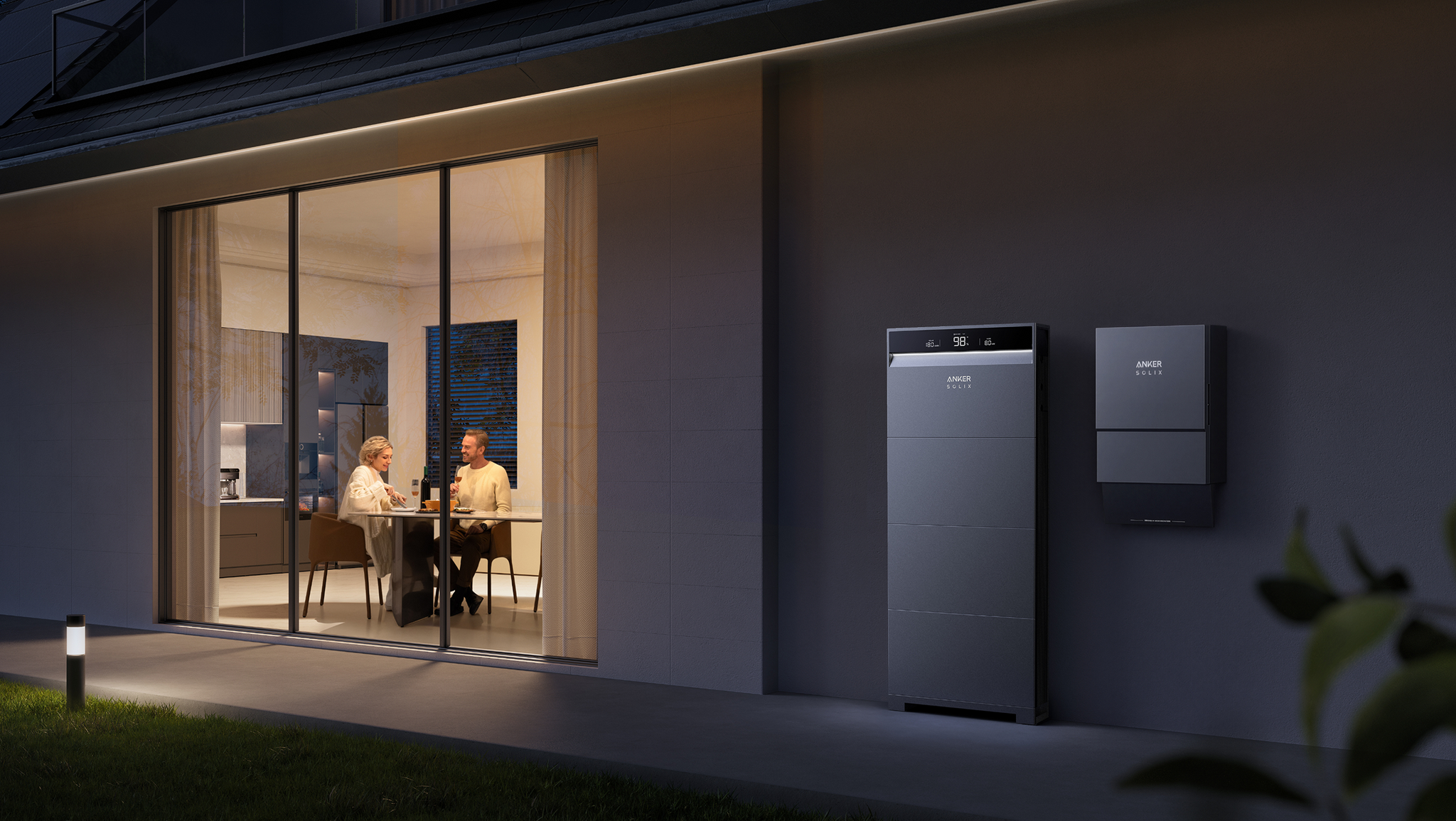

Whole-Home Backup Power

Anker SOLIX X1

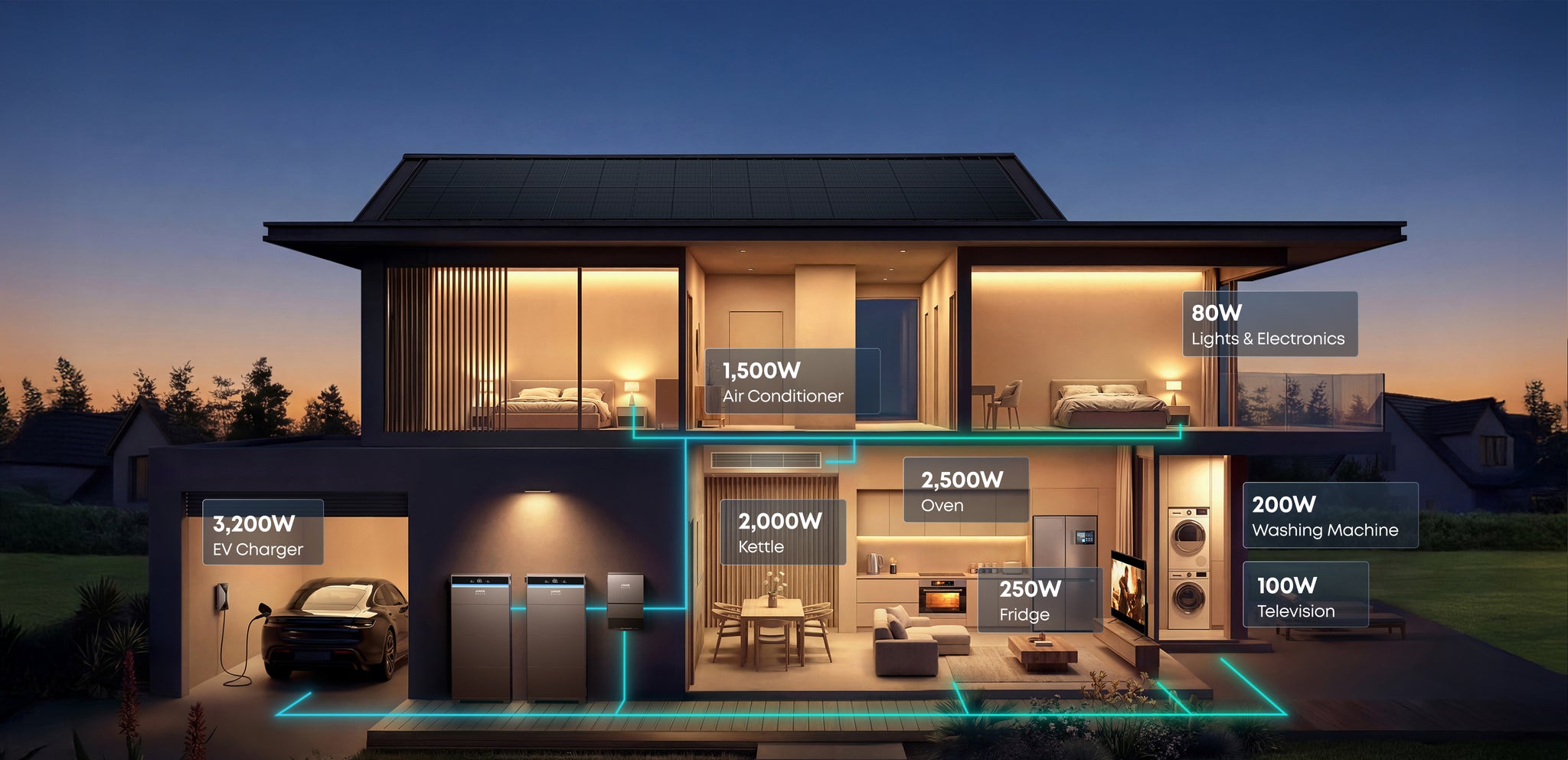

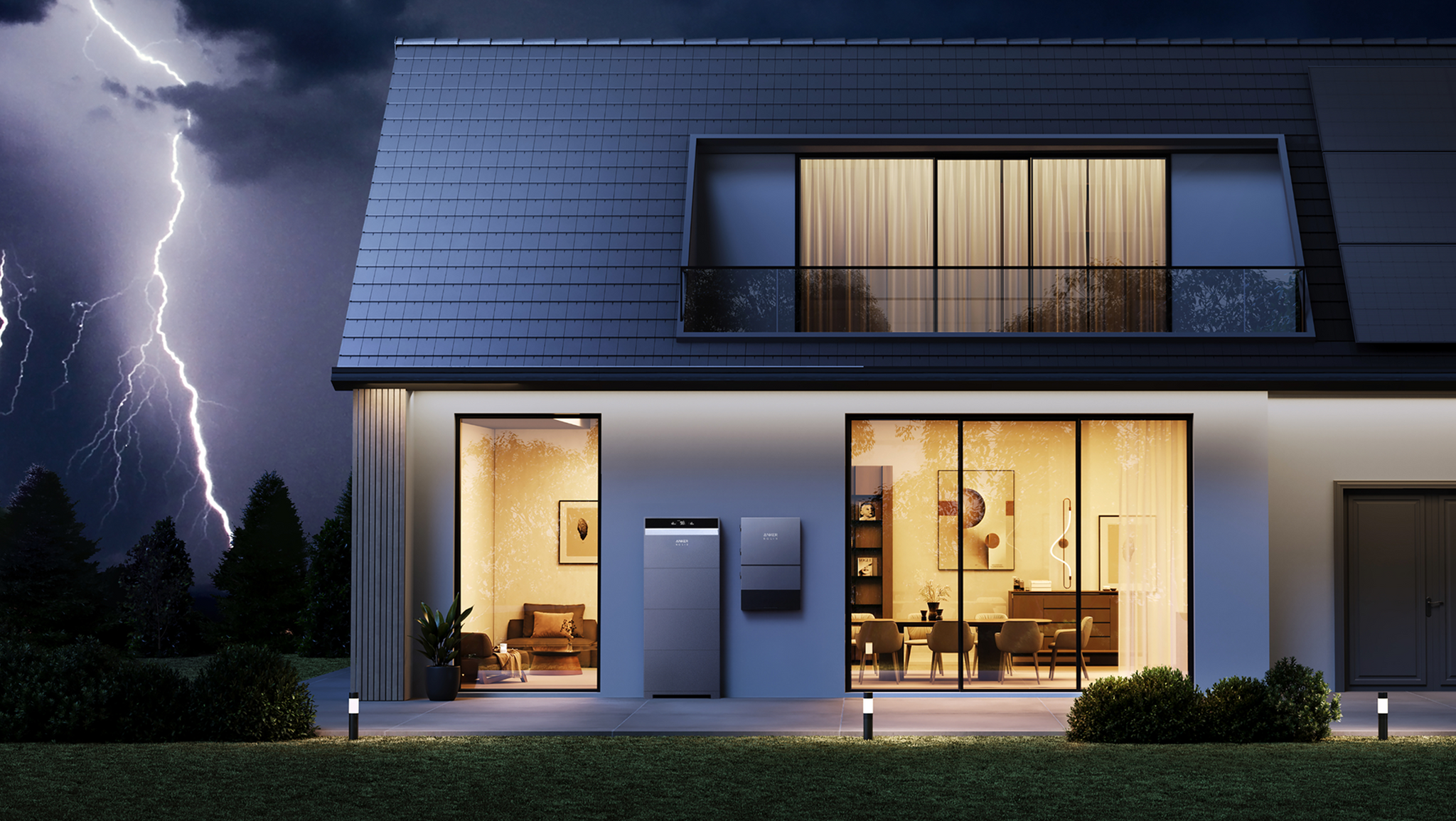

Whole-Home Backup Without Compromises
Stay powered when it matters most. With parallel battery support delivering up to 12kW (single-phase) or
 24kW (three-phase), you can keep your entire home powered—aircon, fridge, EV charger, and more. No load shedding required.
0 ms Load-Side Switching
Power outage? Your family won't even notice. With seamless backup switching,
your Wi-Fi stays online, fridge continues running, and your work laptop never skips a beat.
Anker SOLIX X1

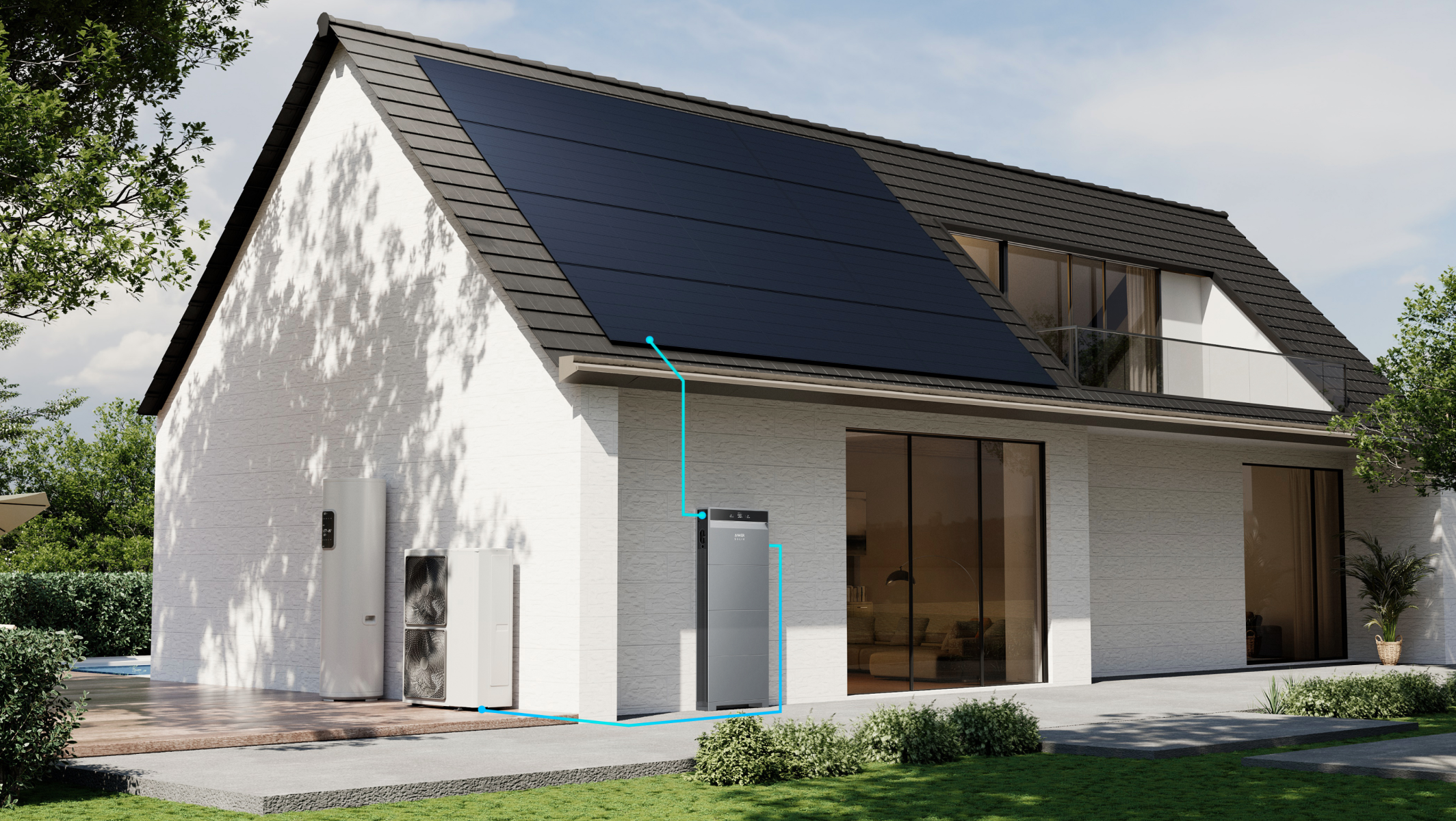

Supports Third-Party Off-Grid Solar Charging
Already have solar from another brand? No worries—Power Dock Pro keeps your battery charging even during outages,
extending backup indefinitely.
Anker SOLIX X1
The Power Trifecta Backup, Savings, Energy Freedom

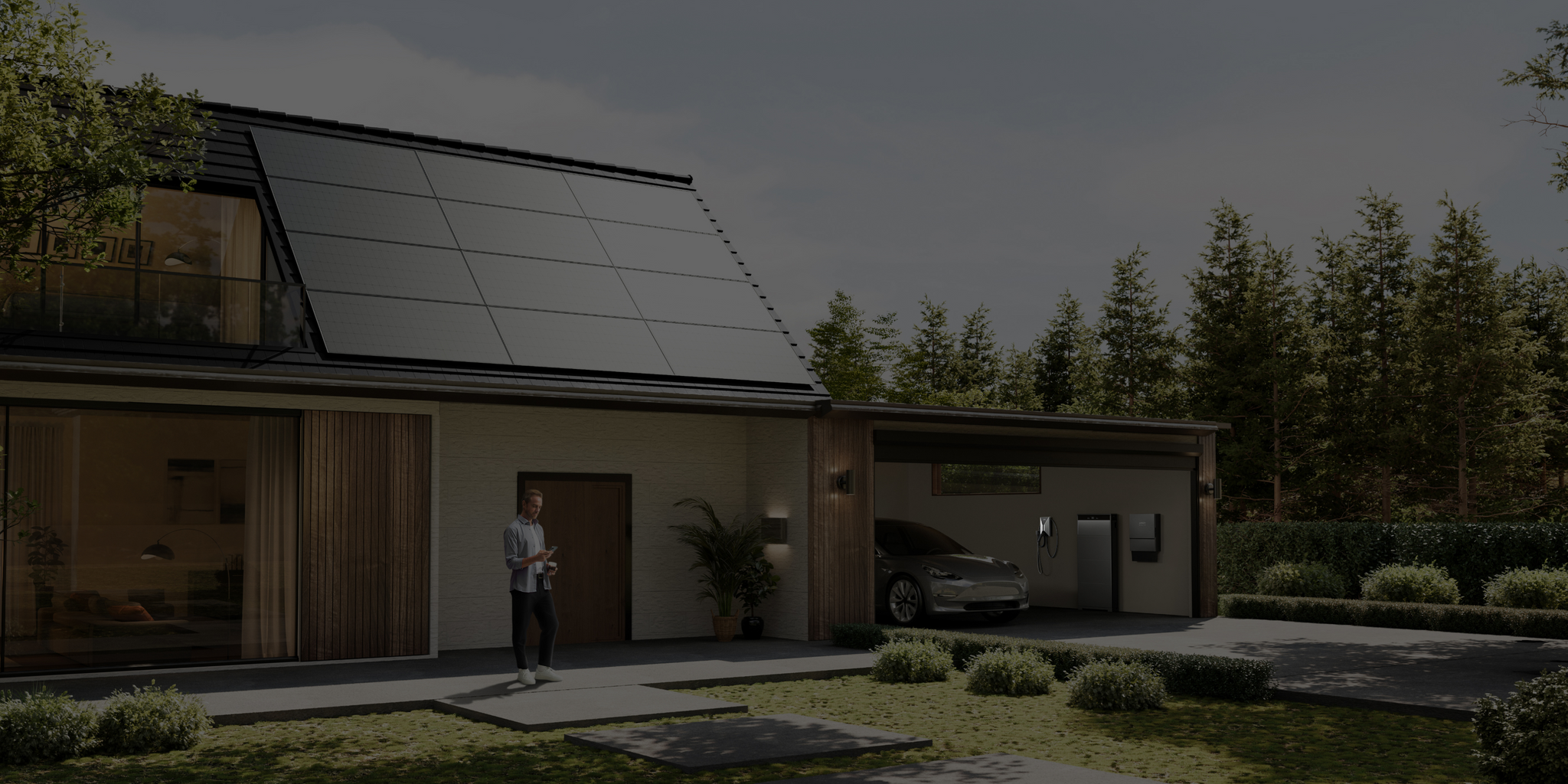

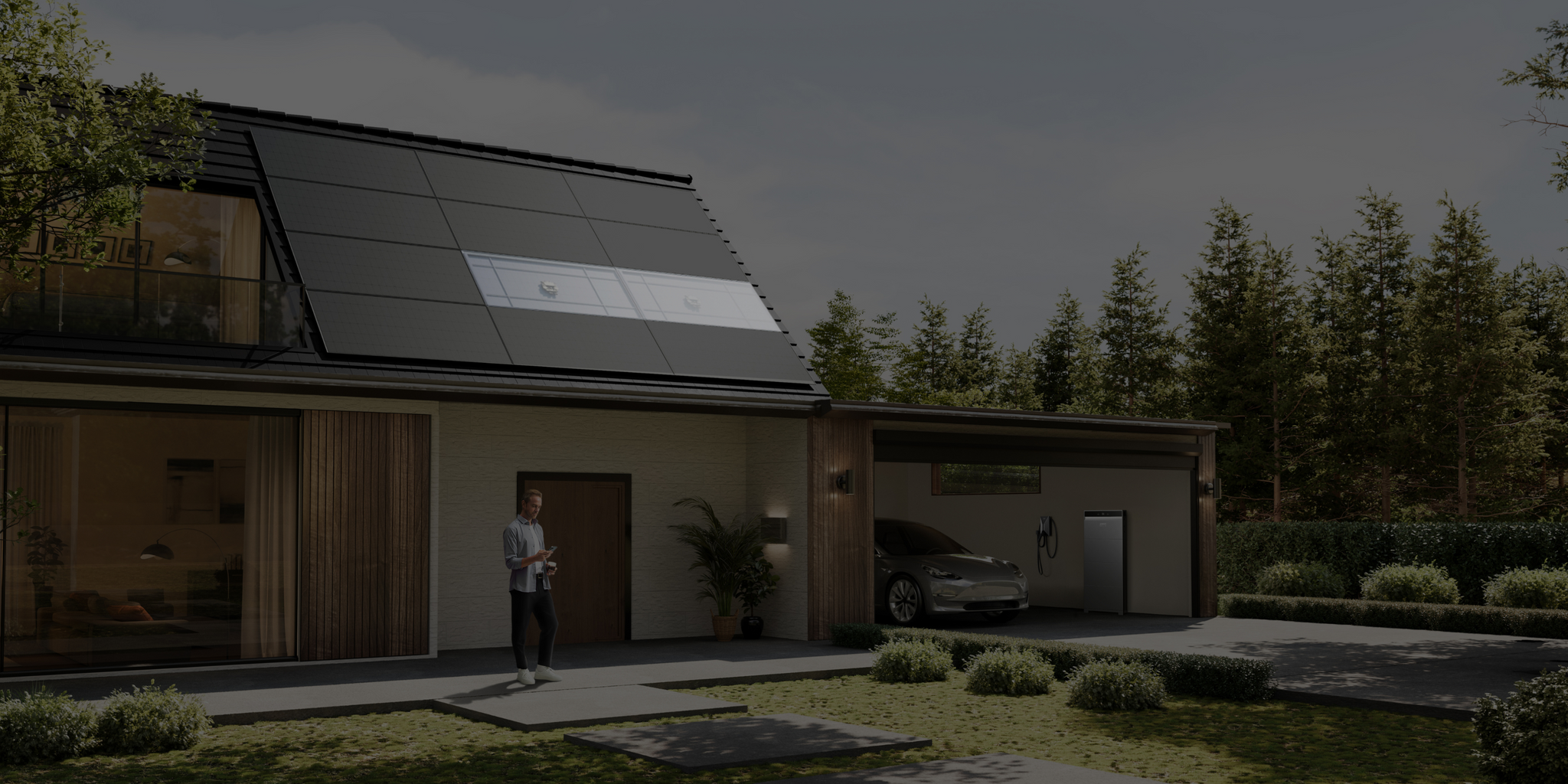

Anker SOLIX X1 transforms your power experience. Store solar energy during the day for nighttime use or off-grid. Enjoy savings on your power bill, too.

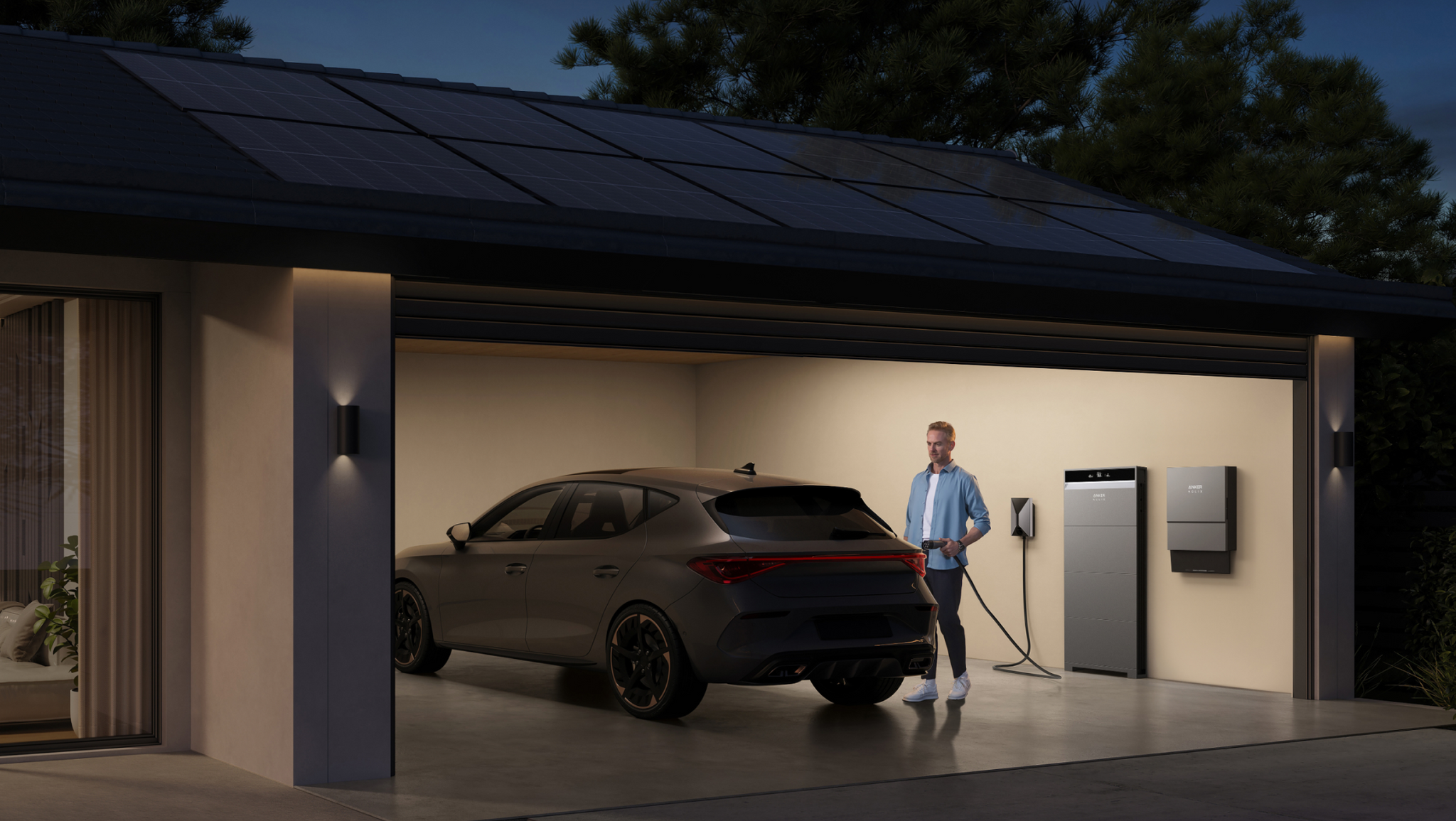

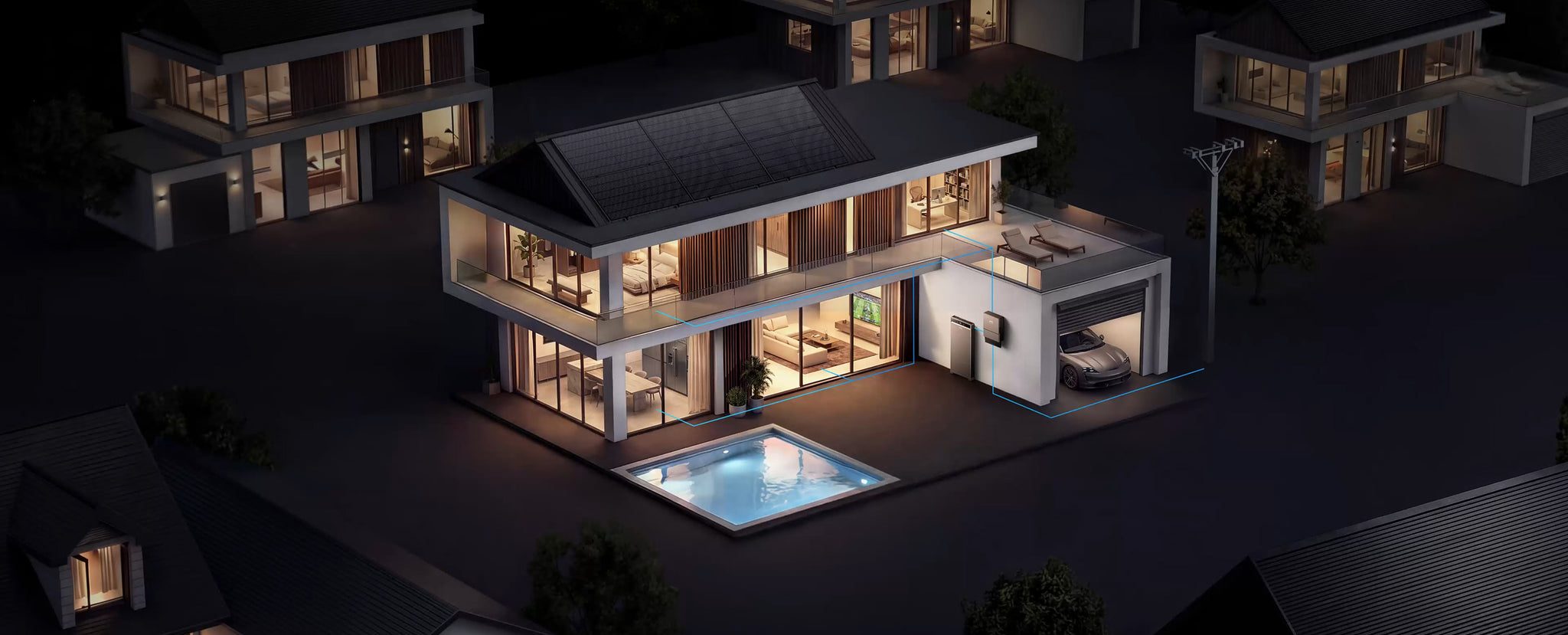

Connect X1 with Anker SOLIX EV Charger to create a home micro-grid for increased energy independence fueled by free solar power, daily.
+-
+-
+-
+-
+-
See How X1 Works

Energy for Every Situation

Anker SOLIX X1
Anker SOLIX X1
Anker SOLIX X1
Anker SOLIX X1
Anker SOLIX X1
Anker SOLIX X1

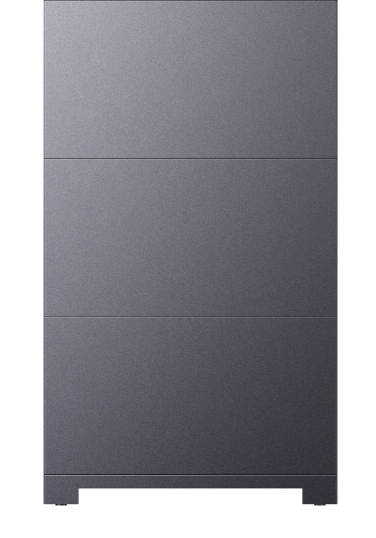

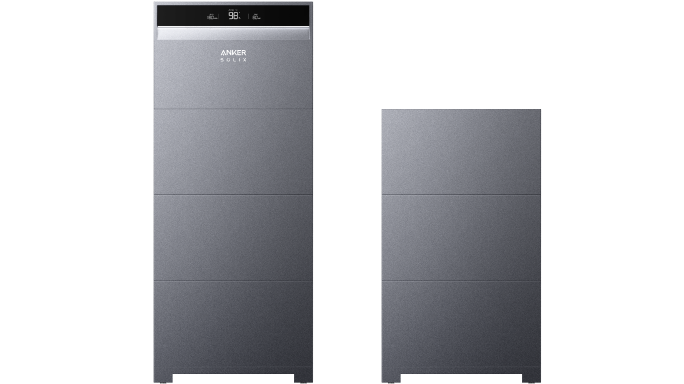

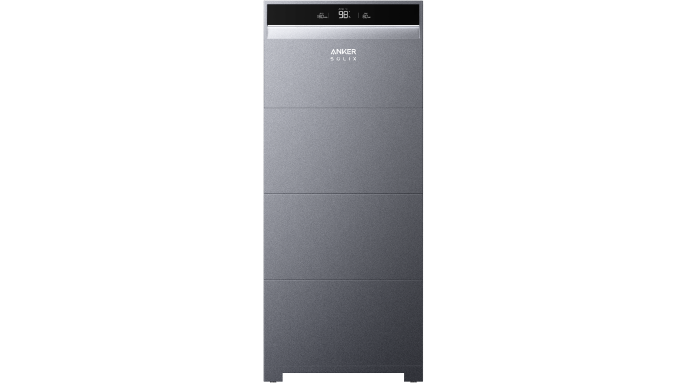

Modular Build
Power That Scales with You

Each battery is packed with an innovative energy optimizer for independent charging and discharging, providing more attainable energy.

The energy optimizer is what makes the modular design possible, allowing you to scale output and capacity based on your needs.

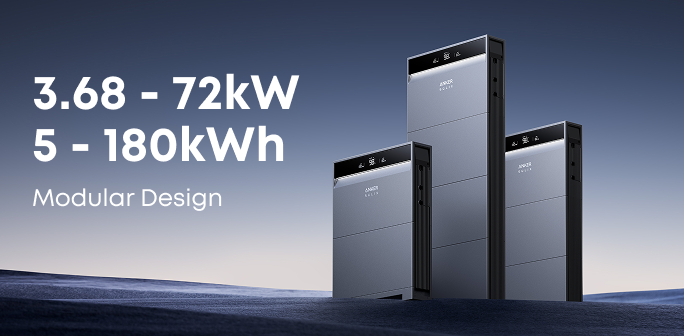

5-180kWh | 3.68-72kW
Energy for Your Exact Needs
0 Energy Loss
While Expanding Capacity
2000+kWh*
More Attainable Energy
*Note: Data based on Anker SOLIX X1 hybrid three-phase 12kW power module.
Energy Customized to Your Needs
Scale power to perfectly match your needs with single-phase and three-phase configurations, each with four power modes. Single-phase options range from 3.68kW to 6kW, and three-phase options range from 5kW to 12kW.
Essential Appliances
Anker SOLIX X1
Wi-Fi Router
Anker SOLIX X1
Lights
Anker SOLIX X1
Television
Anker SOLIX X1
Laptop/Home PC
Anker SOLIX X1
Freezer
Anker SOLIX X1
Washer/Dryer
Heavy-Duty Appliances
Anker SOLIX X1
Air Conditioner
Anker SOLIX X1
Dishwasher
Anker SOLIX X1
Electric Oven
Anker SOLIX X1
Pool Pump
Anker SOLIX X1
Electric Vehicle
Anker SOLIX X1
Heat Pump
3kW/5kWh
1 Power Module + 1 Battery Module
9kW/15kWh
1 Power Module + 3 Battery Modules
12kW/30kWh
1 Power Modules + 6 Battery Modules
18kW/30kWh
2 Power Modules + 6 Battery Modules
Anker SOLIX X1
Add More Power
Anker SOLIX X1
Anker SOLIX X1
Anker SOLIX X1
Note:
1. The estimate is based on Anker SOLIX X1's hybrid three-phase 12kW power module.

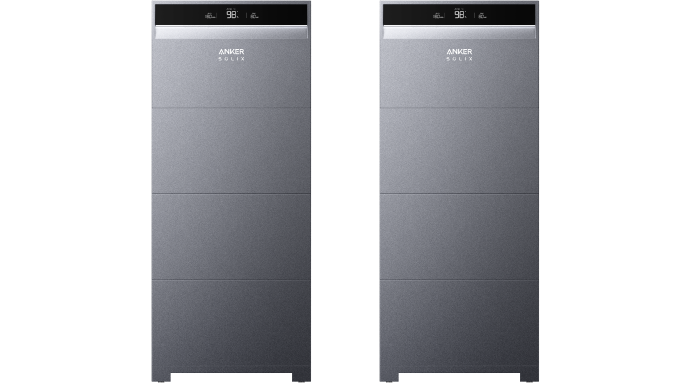

2. Refer exclusively to the hybrid model's three-phase system, which supports up to six systems in parallel. The hybrid model's single-phase system supports parallel connections of up to two systems.

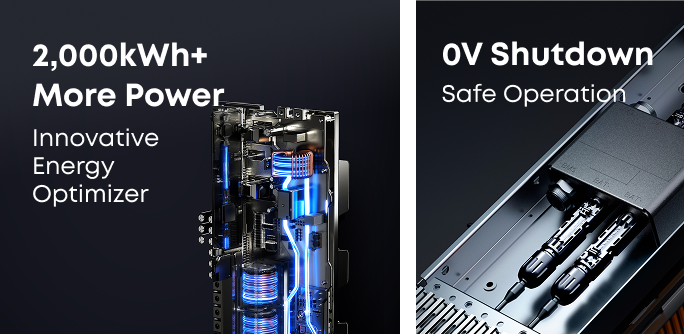

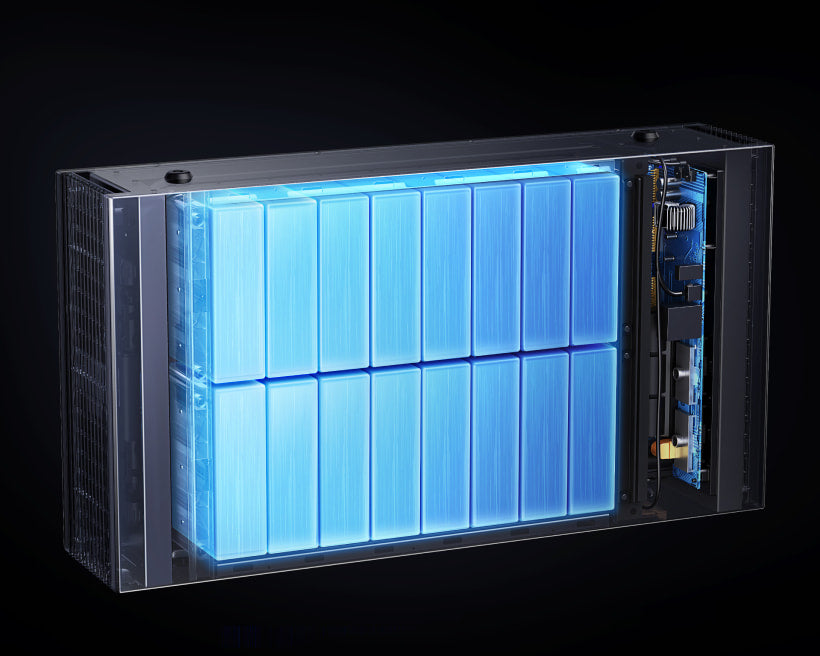

Innovative Energy Optimizer

What is the Barrel Effect?
In traditional battery packs, your weakest battery affects the entire system. When it's full, all batteries stop charging. When it's empty, all batteries stop discharging.
Modular Design, More Power
Each battery pack contains an innovative energy optimizer for independent charging and discharging. That eliminates the Barrel Effect and delivers up to 2000kWh+ power.

Scale at Minimal Cost

Thanks to the modular design, you can start with a small system and add to it as your family grows. Every battery added connects to your system without energy loss.

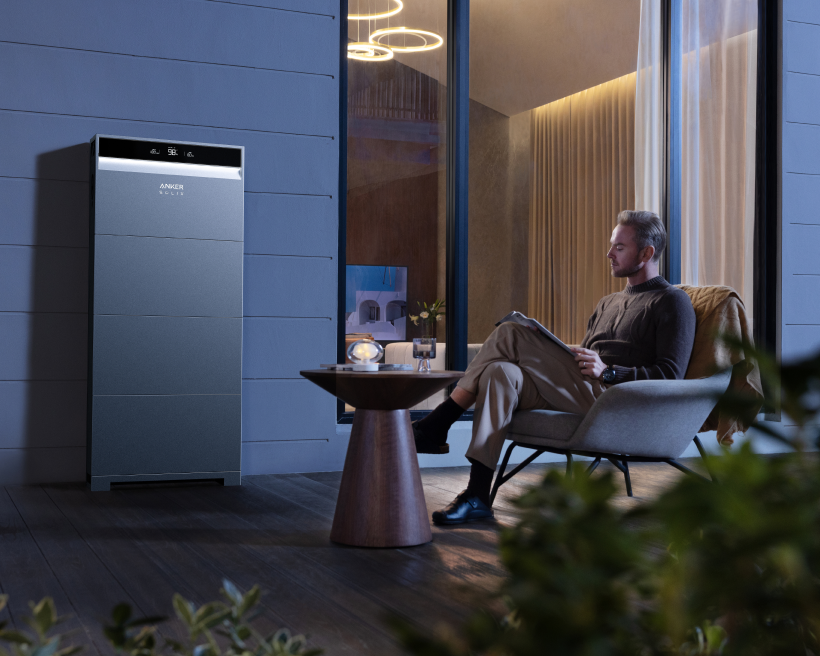

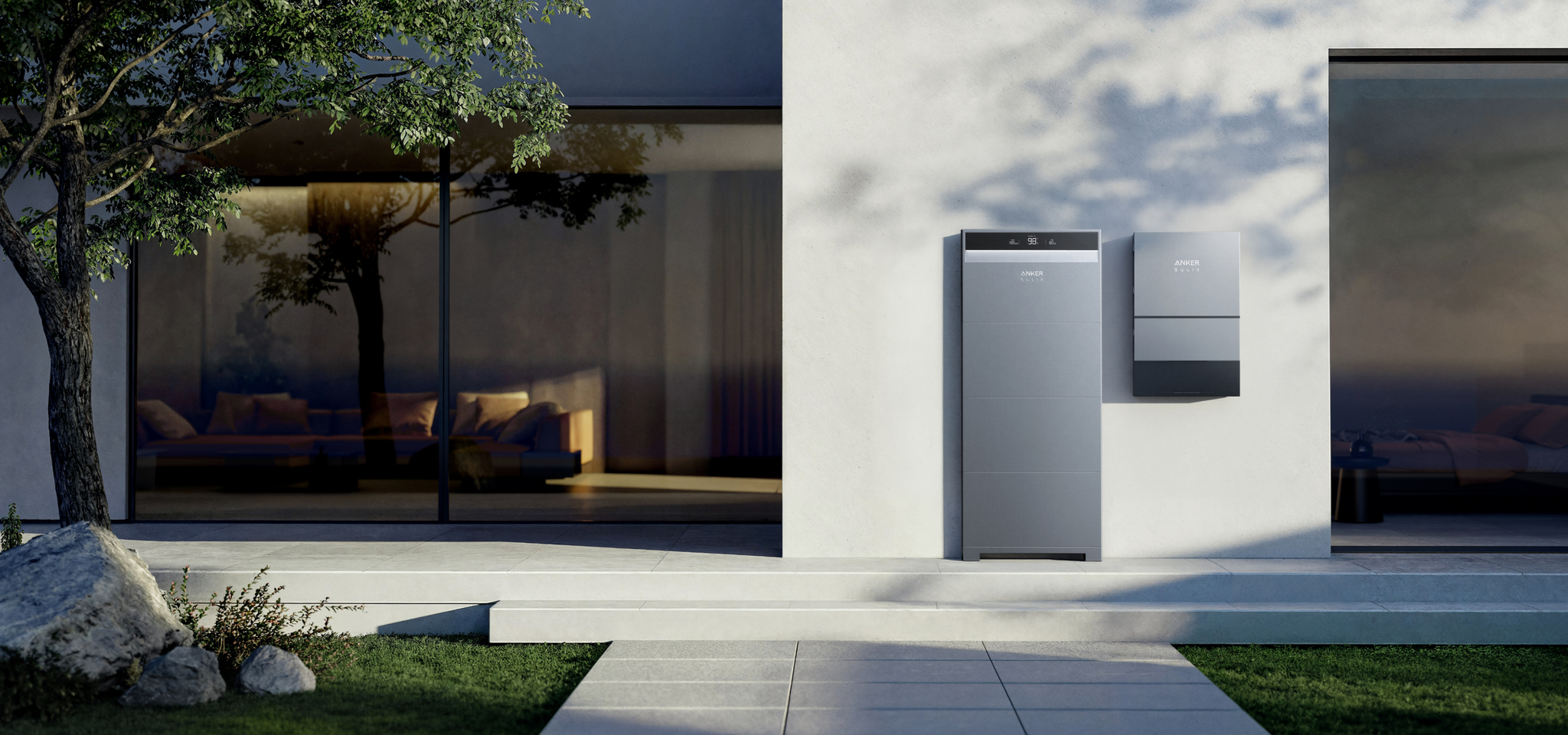

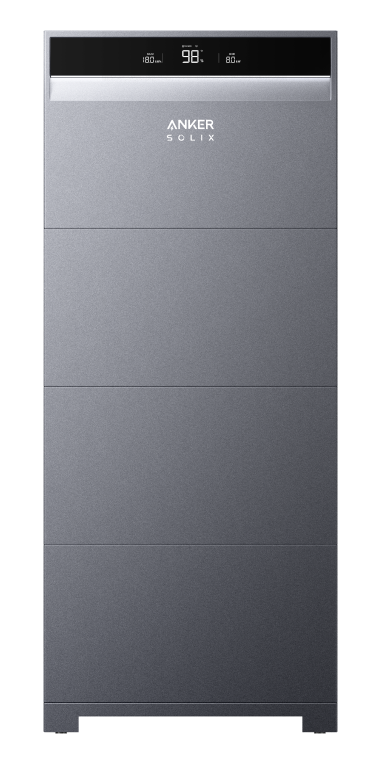

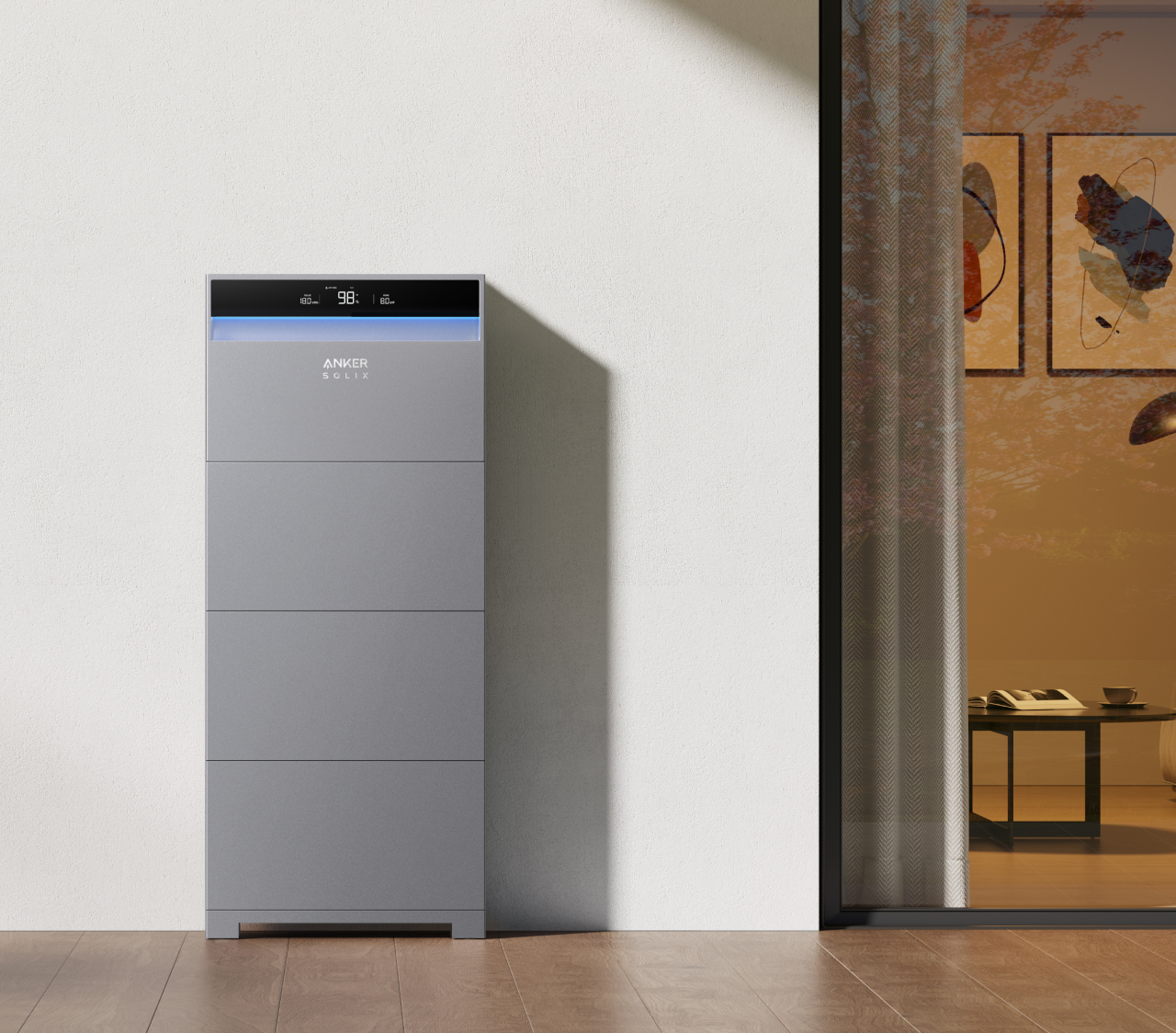

Minimalist Design
Sleek Power for Your Home

See the X1 Inspiration

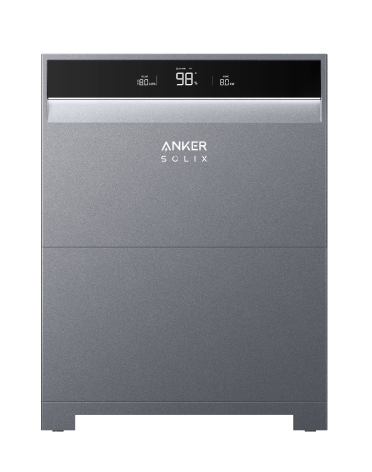

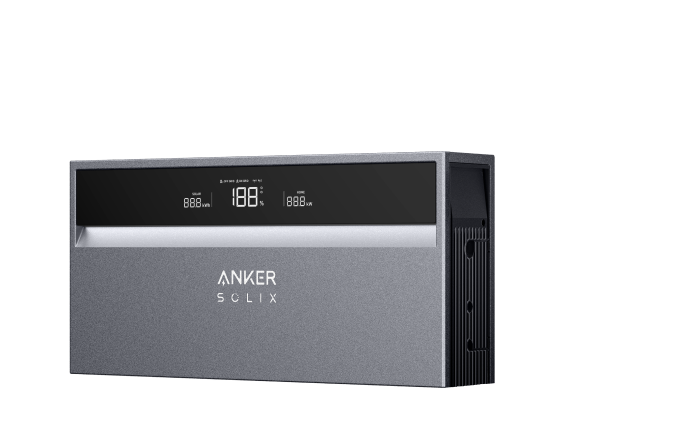

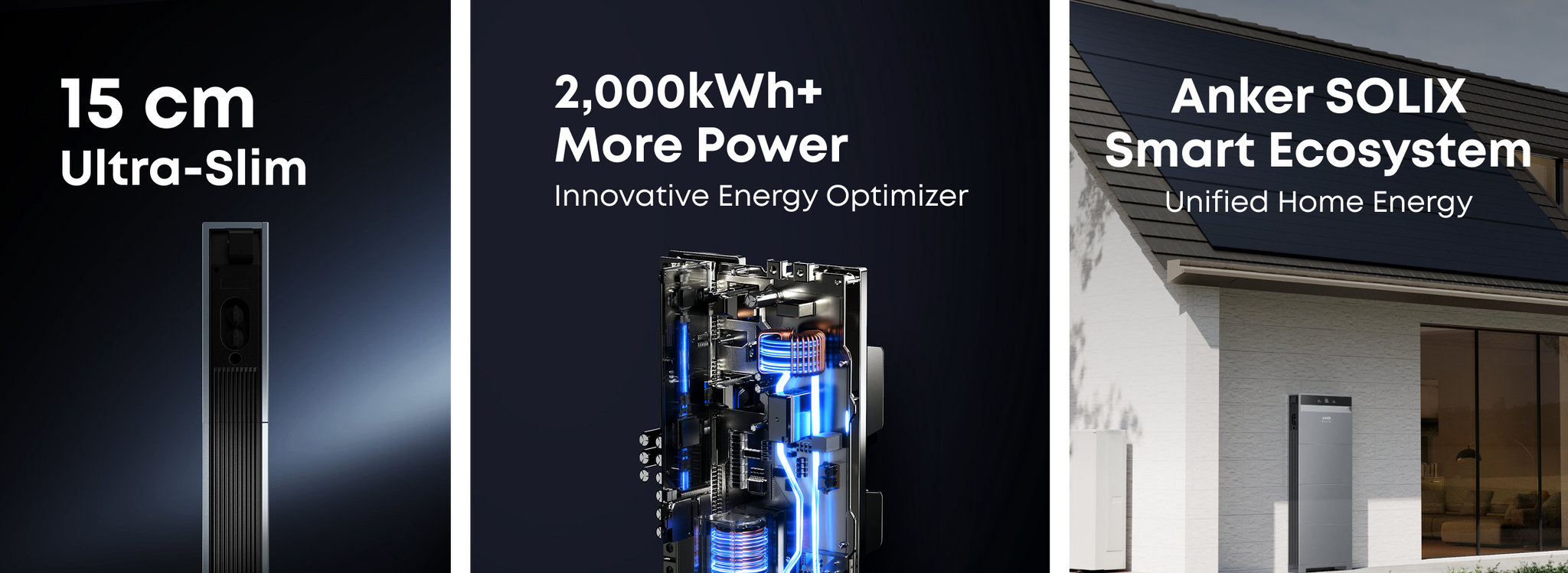

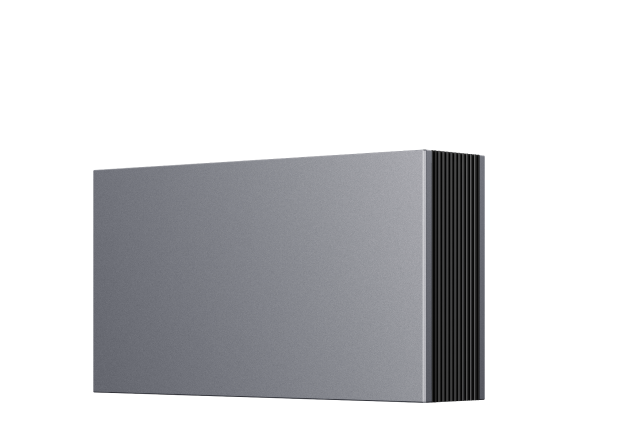

15cm Build Contains It All

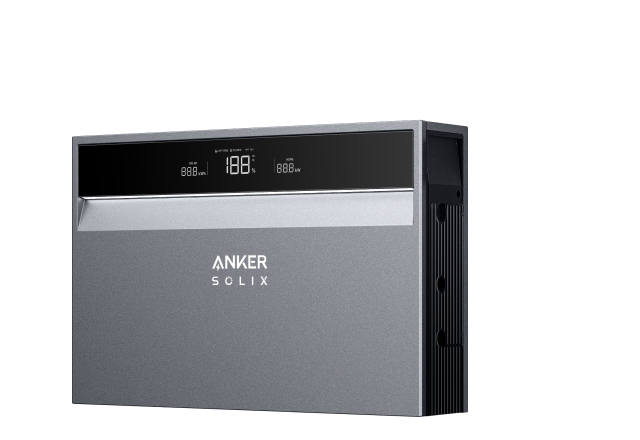

X1 is ultra-thin, thanks to its all-in-one design that combines battery and power modules. Install it almost anywhere around your home.
Thickness
15cm
All in One

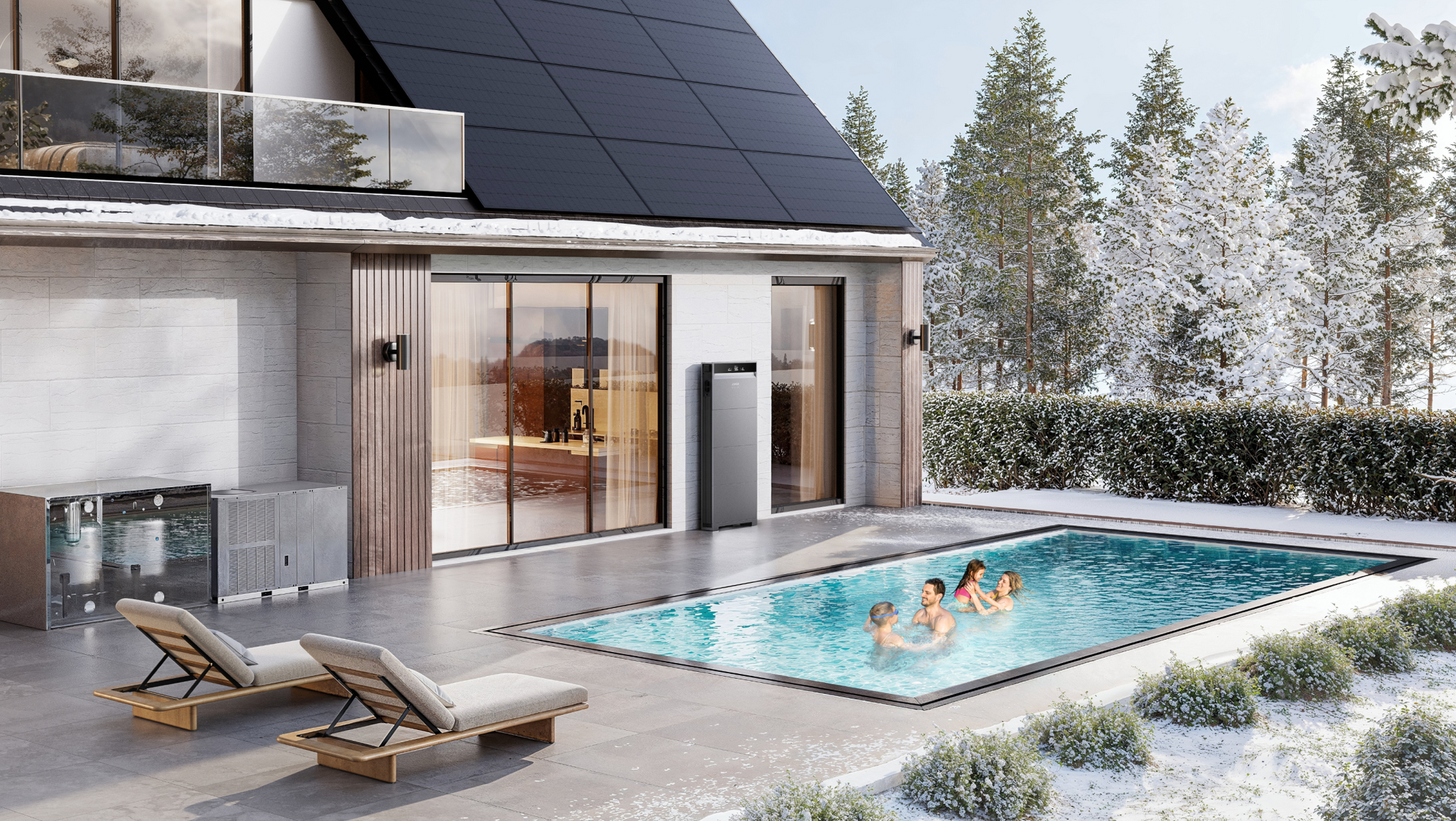

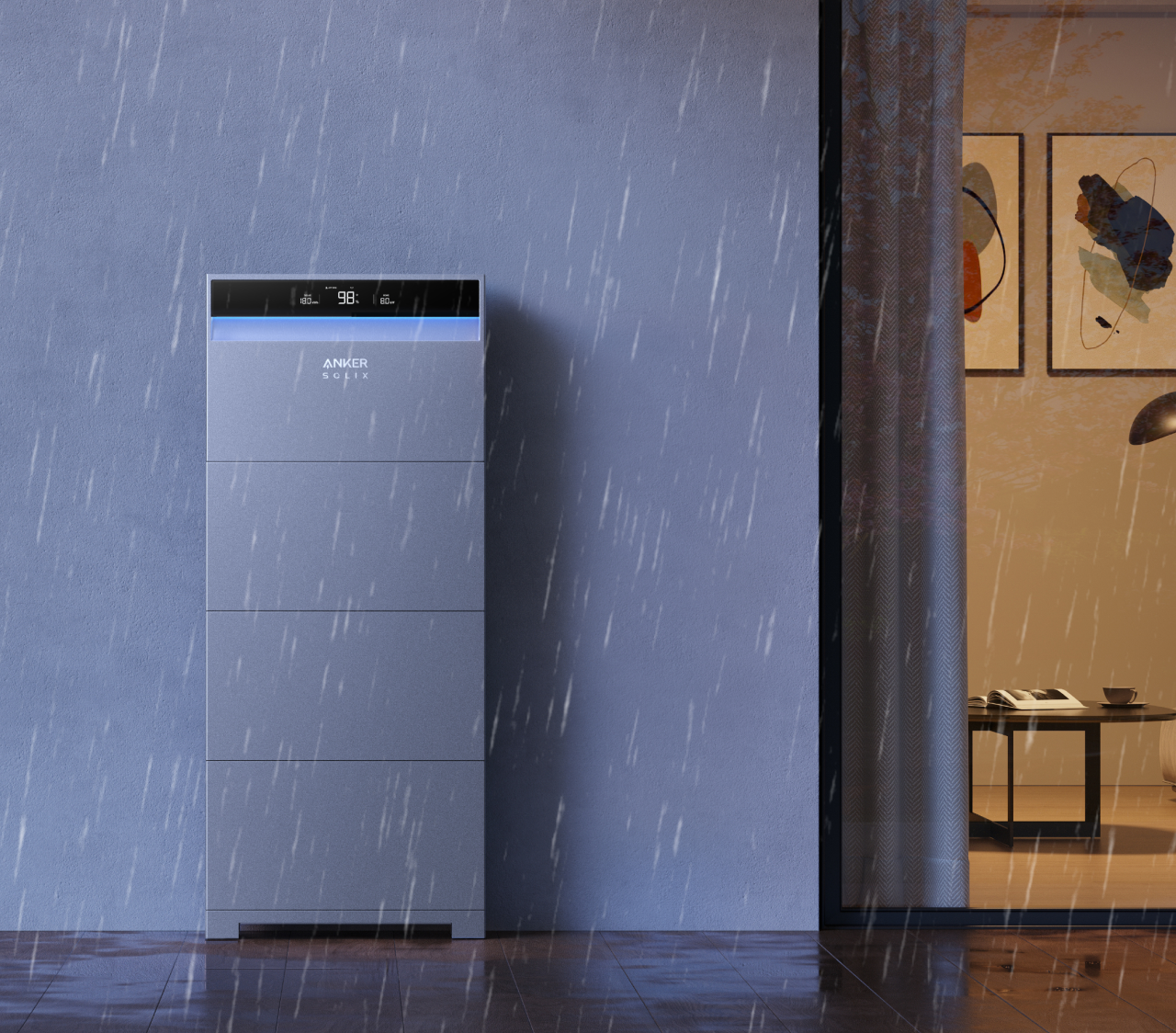

Power Up with Extreme Toughness

Outages can be particularly brutal in the winter and summer. X1 is equipped to endure the extreme chill and heat with its superior build for peak performance.

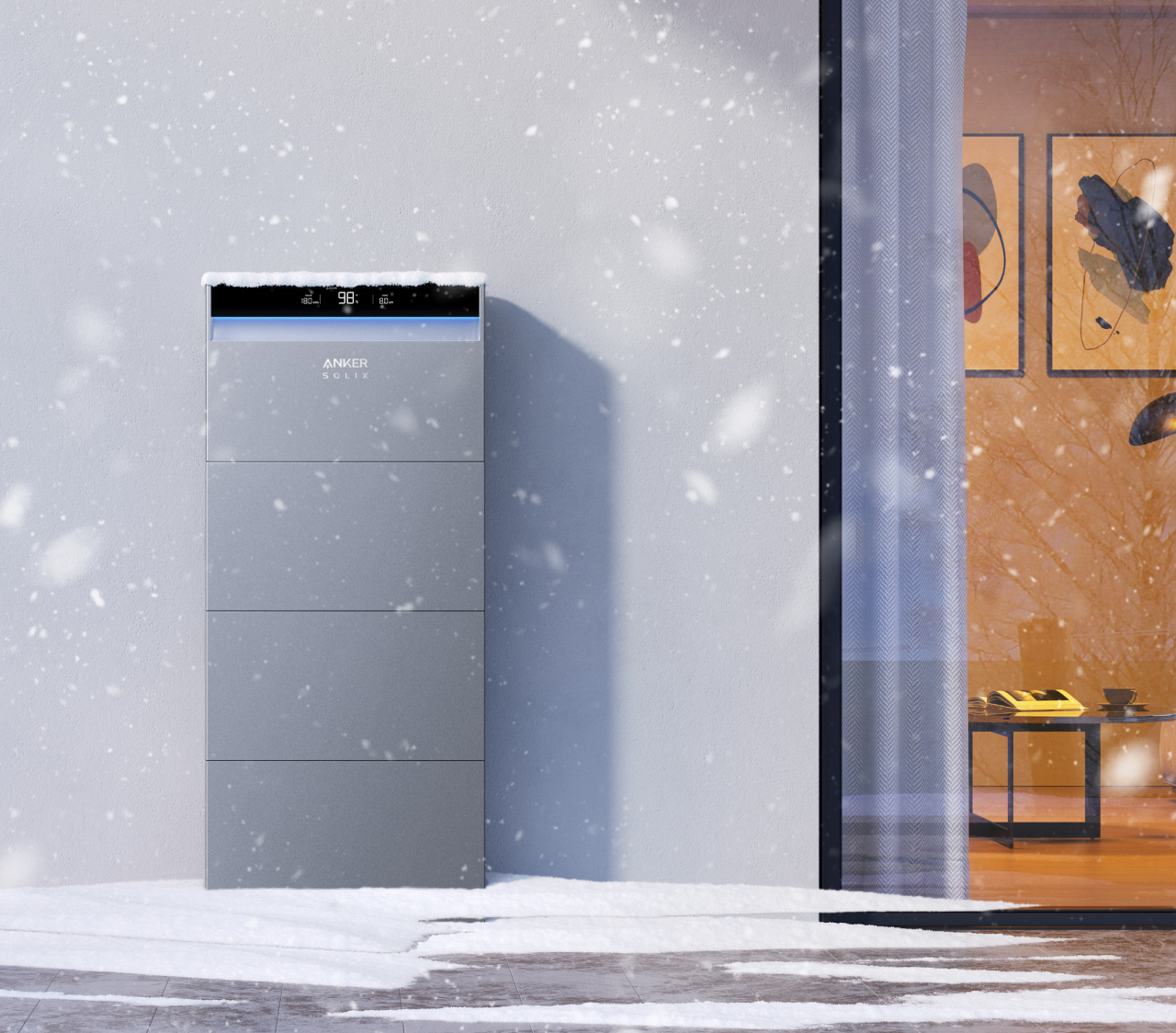

Extreme Performance at Frigid -20°C
X1 solves battery power challenges during freezing weather. Thermal boosting kicks in at 0°C and keeps the battery operating at -20°C.
Unparalleled Strength at Blazing 55°C
IP65 and C5 Protection,
10-Year Warranty
Anker SOLIX X1
Anker SOLIX X1
Anker SOLIX X1
What Makes X1 Resilient?

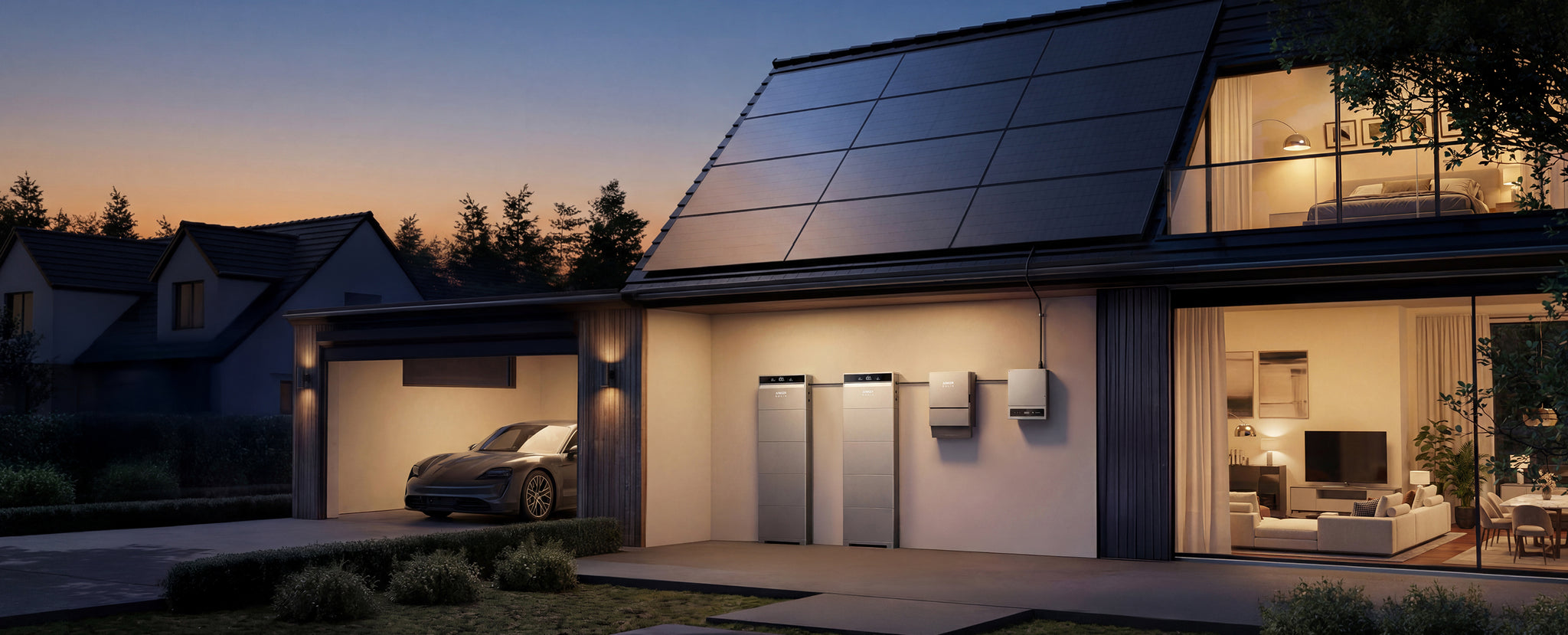

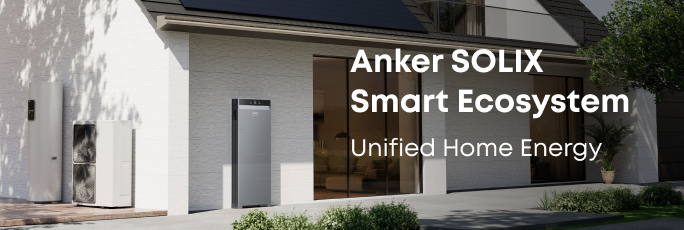

Anker's Smart Ecosystem Unites Your Home Energy

Anker SOLIX X1
Experience intelligent energy convenience with the complete integration of Anker SOLIX X1, our portable power stations, and Solarbank.

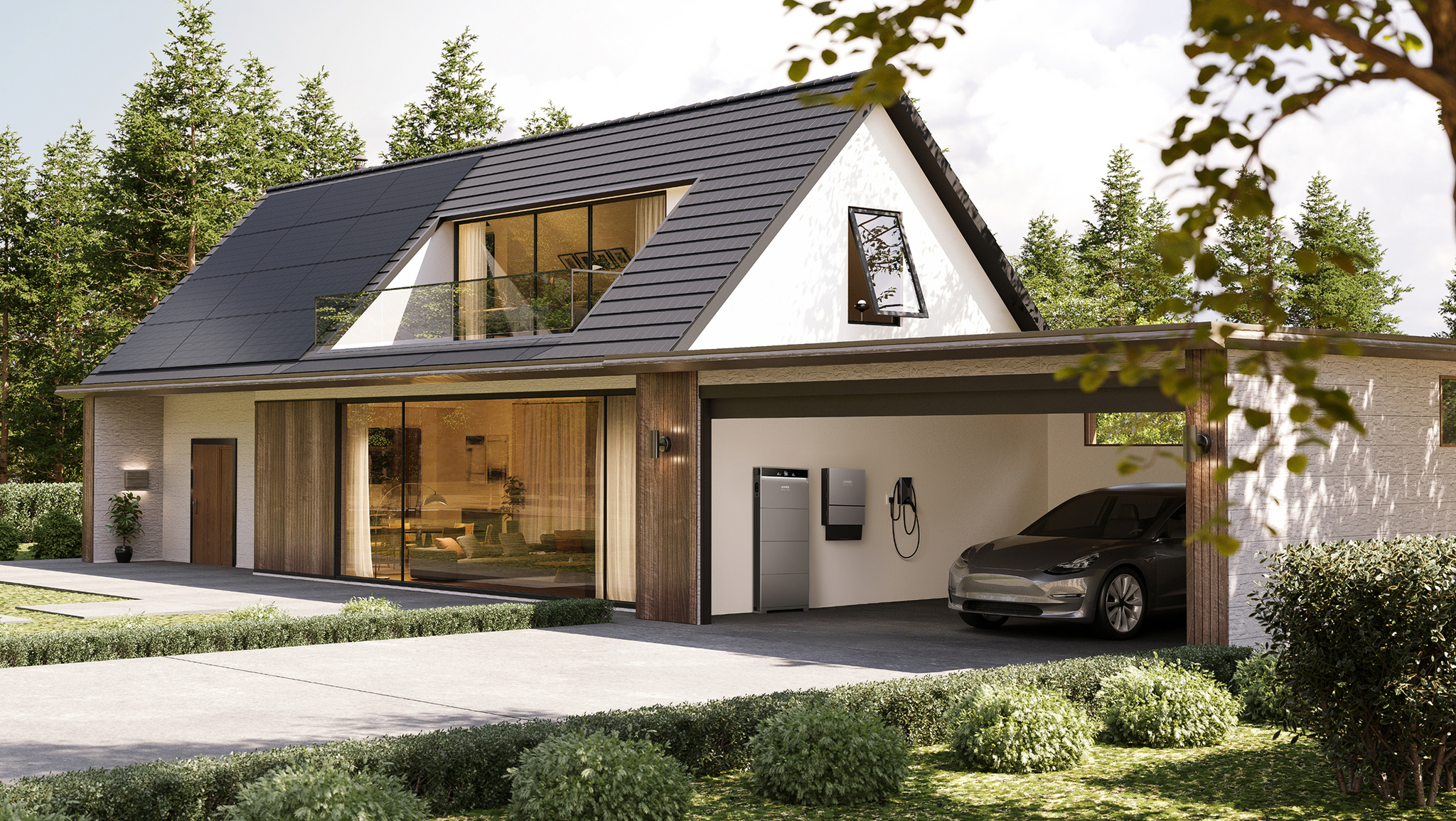

You can even use X1 with Anker SOLIX EV Charger, maximizing self-consumption of solar energy to charge your electric vehicle.
X1 is also Smart-Grid Ready and capable of powering your heat pump. To manage, just use the Anker app.
Smart Energy, Max Savings
X1 features six distinct energy modes. Three are for comprehensive power management, while the remaining three further enhance your efficiency.
Minimize grid electricity. Your solar panels charge X1 and power your home during the day while you use X1 battery power at night. No grid power needed.
Minimize your electricity bill. Charge when energy prices are low overnight and during the day. Discharge when prices are high to avoid the surcharges.

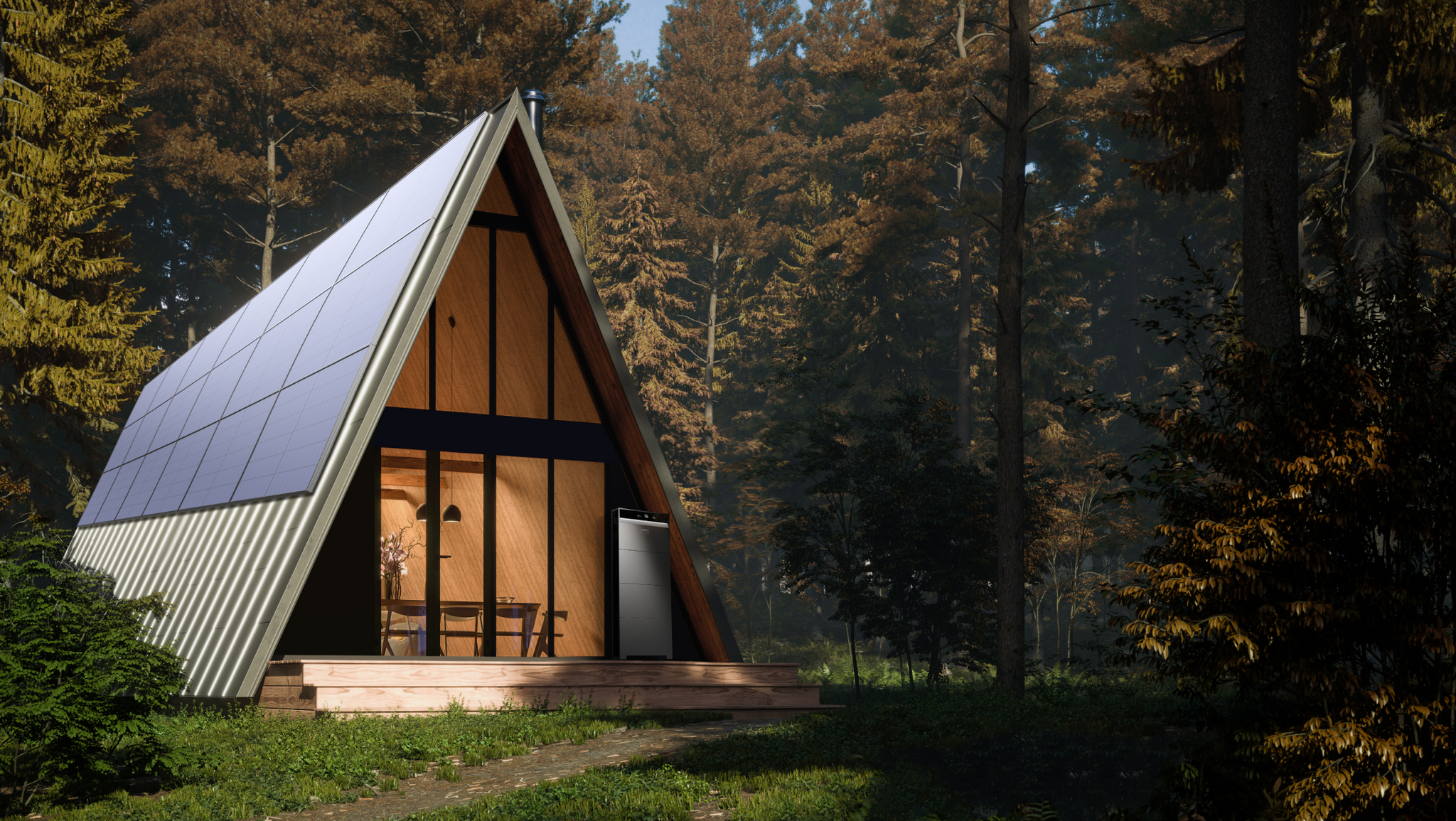

Activate off-grid power. Manually switch to Off-Grid mode with just solar panels and X1.
Next-Level Energy Savings

Next-Level Energy Savings

X1 thinks ahead, so you don't have to. Powered by Anker Intelligence™—a privacy-first system that uses your consumption habits, live solar data, weather forecasts, and dynamic tariffs to make every watt count.
Your Energy Surplus, Sorted
€520
Save up to €520 on your electricity bill every year.
Compatible with 830+ Power Providers
With over 830 integrated APIs, the Anker app lets you tap into an extensive network of dynamic tariff providers, so you're always charging at the lowest rate.

Note: APIs for power providers are supported for X1, Power Dock, EV Charger, and Solarbank 3 Pro.
Anker SOLIX X1

Manage and Control with a Tap

Real-Time Monitoring and Control
The Anker app gives you real-time data to monitor home power generation and consumption wherever you are.
Optimized with Data Insights
Anker SOLIX X1
Anker SOLIX X1

Safe and Reliable

Anker SOLIX X1

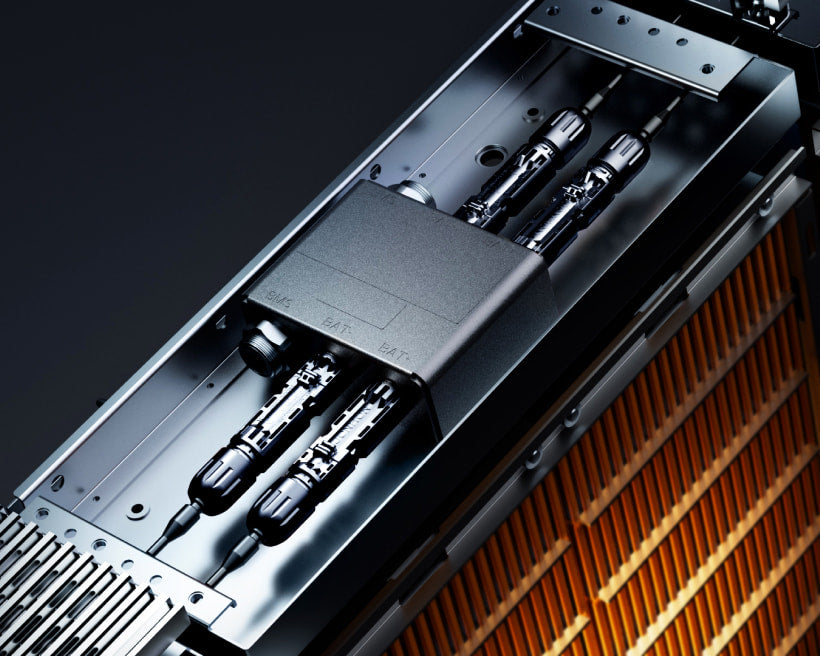

Shock-Free 0V Shutdown
Your safety is our top priority. A zero-voltage shutdown activates during transportation, installation, and servicing to keep you safe from electric shock.
Anker SOLIX X1

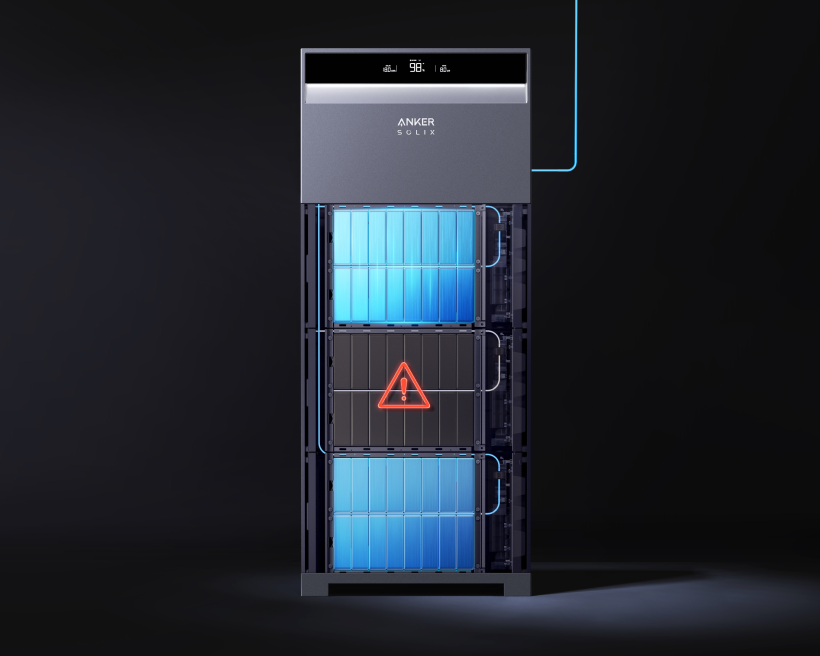

Abnormal Batteries Auto-Isolate
If a battery pack goes down, your power doesn't. Each battery pack contains an innovative energy optimizer. If something goes wrong, the failed module turns off, so power keeps going.
Anker SOLIX X1
Stable LiFePO4 Batteries
The chemical makeup of LiFePO4 batteries in X1 is safe and stable. They can withstand thermal runaway between 300°C to 350°C, significantly higher than ternary lithium batteries.
Anker SOLIX X1
Powerful and Quiet Operation
Rest easy with X1 operating at less than 40dB. It's much quieter than a rumbling gas generator.
Notes:
  • The calculation of 2000kWh+ more energy is based on Anker SOLIX X1's 15kWh batteries compared to a traditional home battery over 10 years.
  • To be quieter than 40dB, the ambient temperature must be below 35°C. Noise level tested in Anker laboratory from 1 m away with typical voltage conditions.
  • Refers exclusively to the hybrid model's three-phase system, which supports up to six systems in parallel and is planned for release in Q2 2025. The hybrid model's single-phase system will support parallel connections of up to two systems and is planned for release in Q3 2025.
  • Off-grid, both of the systems support only single-system output power ratings.

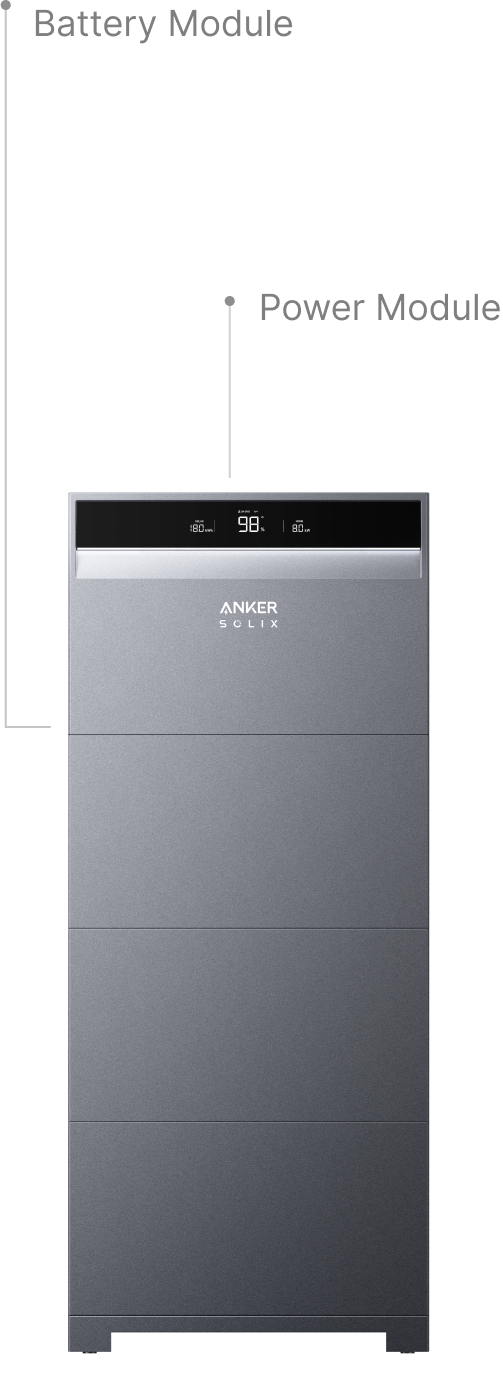

System Overview
Note: The following data is based on Anker SOLIX X1 Hybrid Three-Phase Energy Storage System with 12kW AC output and 15kWh capacity. For customized setups, refer to the specs of each available module.
Anker SOLIX X1
Energy Capacity
15kWh
Note: 5kWh 1 battery module
Switch Time
< 10ms (On-Grid to Off-Grid)
AC Output (On-Grid)
12kW
AC Output (Off-Grid)
12kW
Scalability Per System
Up to 6 Batteries
Note: Up to 12kW / 30kWh
Max Systems in Parallel
6 Systems (On-Grid)
1 System (Off-Grid)
Mounting Options
Ground or Wall
Operational Temperature
-20°C to 55°C
Warranty
10 Years
Tech Specs
Anker SOLIX X1Anker SOLIX X1
Anker SOLIX X1Anker SOLIX X1
Anker SOLIX X1Anker SOLIX X1
PV Input
Max Input Power
7.36kW / 9.2kW / 10kW / 12kW
Max Input Voltage
600 VDC
Start-Up Voltage
60 VDC
Rated Input Voltage
360 VDC
Max PV Input Current
16A
1sc PV Array Short Circuit Current
20A
Number of MPPTs
2
Number of Strings per MPPT
1
MPPT Voltage Range
80-550 VDC
AC Output (On-Grid)
Rated Output Power
3.68kW / 4.6kW / 5kW / 6kW
Rated Output Voltage
12k220 / 230 / 240 VAC
Note:
4.5kW (10s) with 1 battery module
9kW (10s) with 2 battery modules
Rated Frequency
50 / 60Hz
Power Factor
0.8 ind - 0.8 cap
AC Output (Off-Grid)
Rated Output Power
3.68kW / 4.6kW / 5kW / 6kW
Rated Output Voltage
220 / 230 /240 VAC
Rated Frequency
50 / 60Hz
General
Dimensions (W × H × D)
670 × 335 × 150mm
Weight
19kg
Scalability per System
Up to 6 Batteries
Note: Up to 6kW / 30kWh
Max Systems in Parallel
2 Systems (On-Grid)
1 System (Off-Grid)
Operation Temperature
-25°C to 60°C
Noise
≤30dB
Relative Humidity
0 to 100%
Max Operating Altitude
Up to 4,000m
Note: Power Derates from 2,000m
Assembly Ingress Rating
IP66
Warranty
10 Years
Disclaimer: See Anker SOLIX X1 Technical Specifications for more details.
